Category

Industrial Architecture

Authors

SDM Architects

Role

Working Drawings, 3D Viz

01 Administration Building

A rectangular bay with a light steel structure combined with two flat-roof cubicles is repeated in a linear fashion.
The form of the roof is such that it allows soft daylight inside.

Program: It has various departments like HR, Director’s Cabin, Meeting Rooms, Accounts, etc.­ ­
Capacity: 50-60 people
Area: 1700 sqm

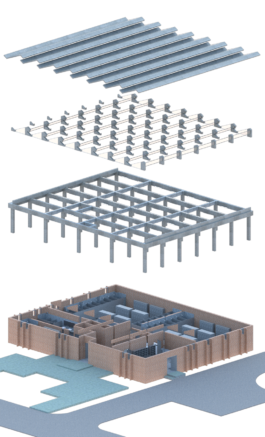

Exploded Isometric Views

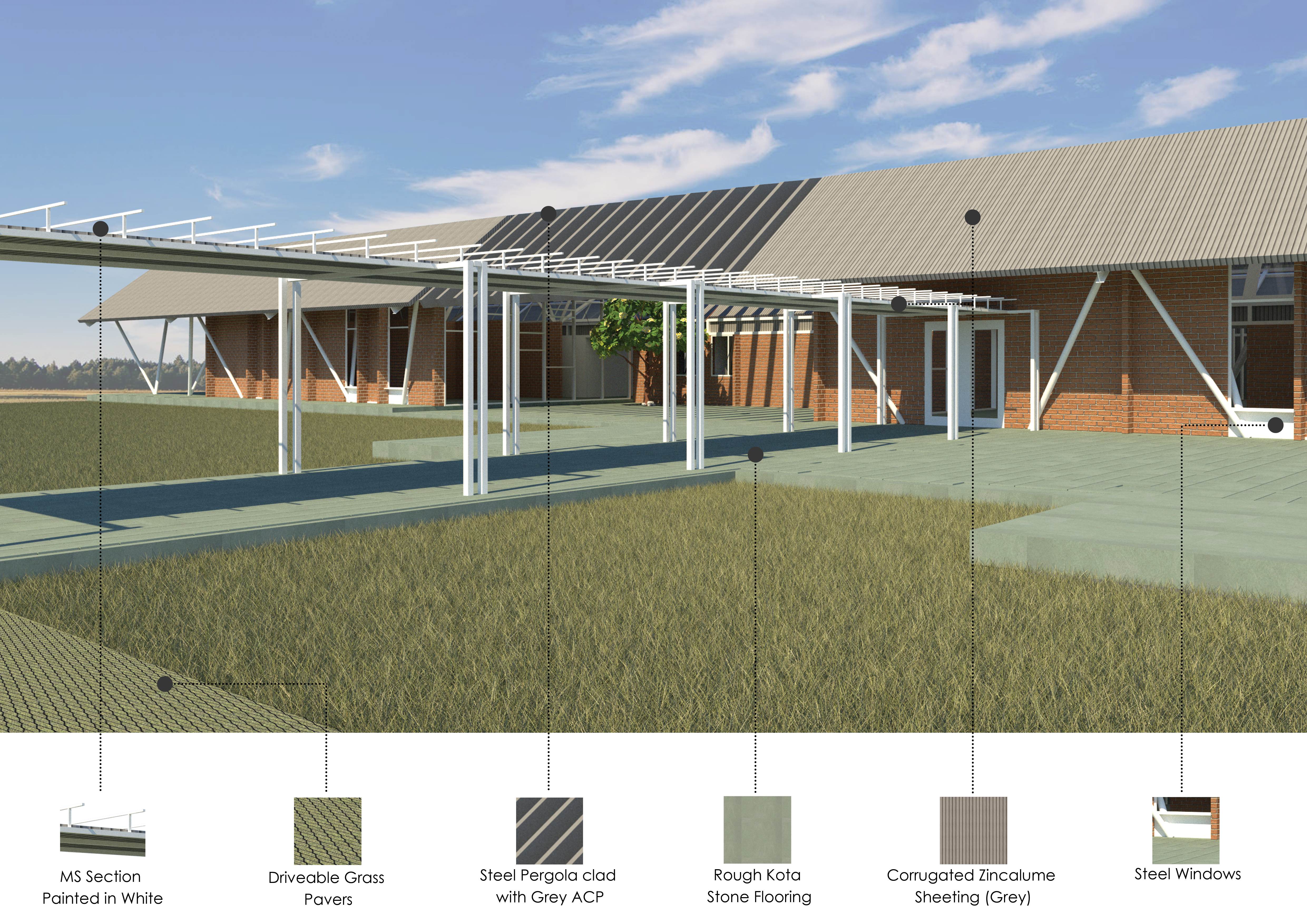

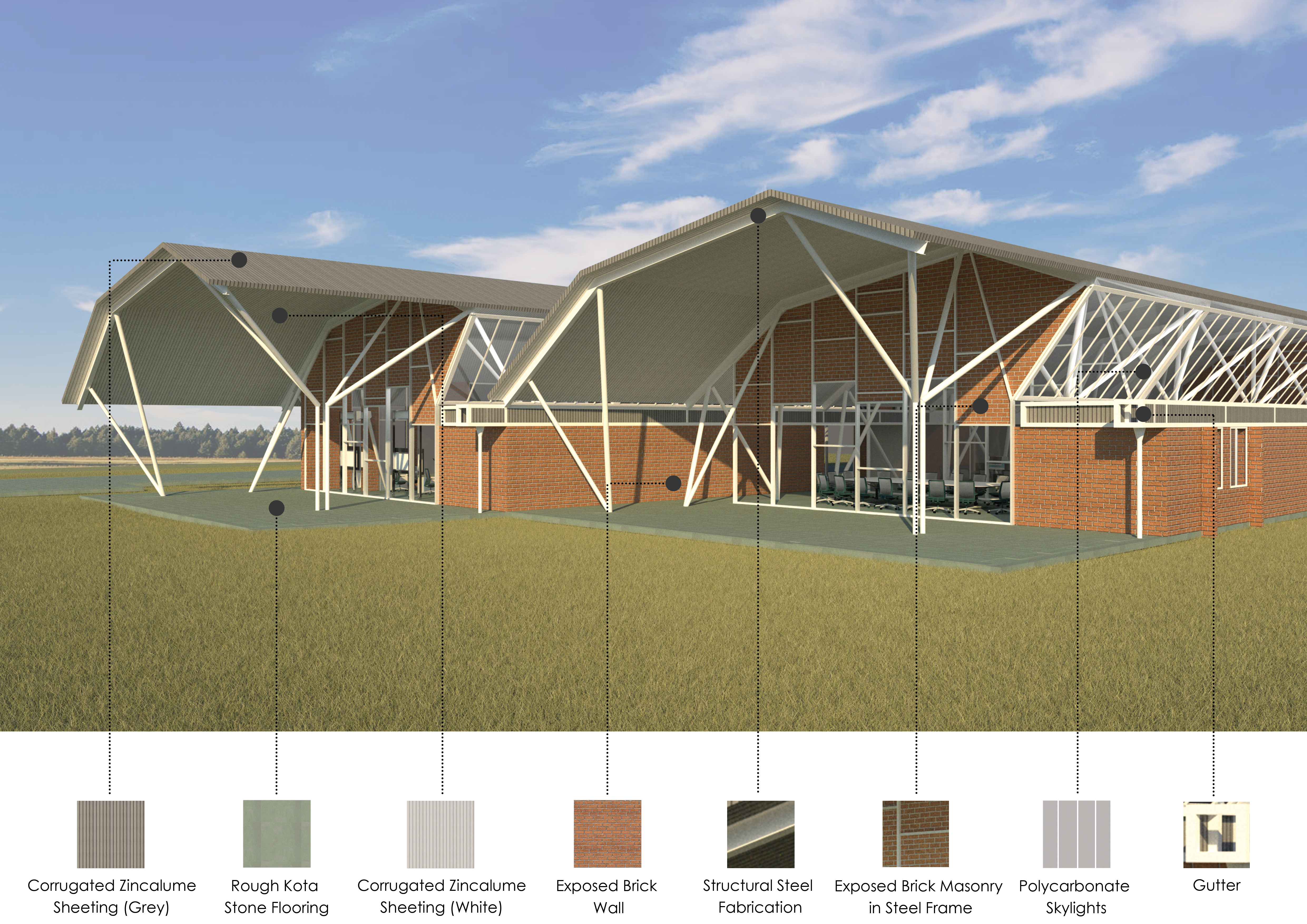

Material Representation Views

Rendered Views

02 Canteen

Program: This building comprises of Kitchen, Dining, Sit-outs, Utility, Toilets.
Capacity: 200 -210 people
Area: 920 sqm

Right besides the Admin building lies the Canteen building. This is a central location and walkable from the bathhouse, lab & the admin. The sloping roof having skylight on three sides encloses the dining space below.

The kitchen pot-wash, storage, utility is all constructed in exposed brick work & RCC. Steel Structural frame and the skylight frames are painted in white to make the space feel lighter and organized. The flooring is black kaddapa stone in the interior & rough kota stone used in the exterior.

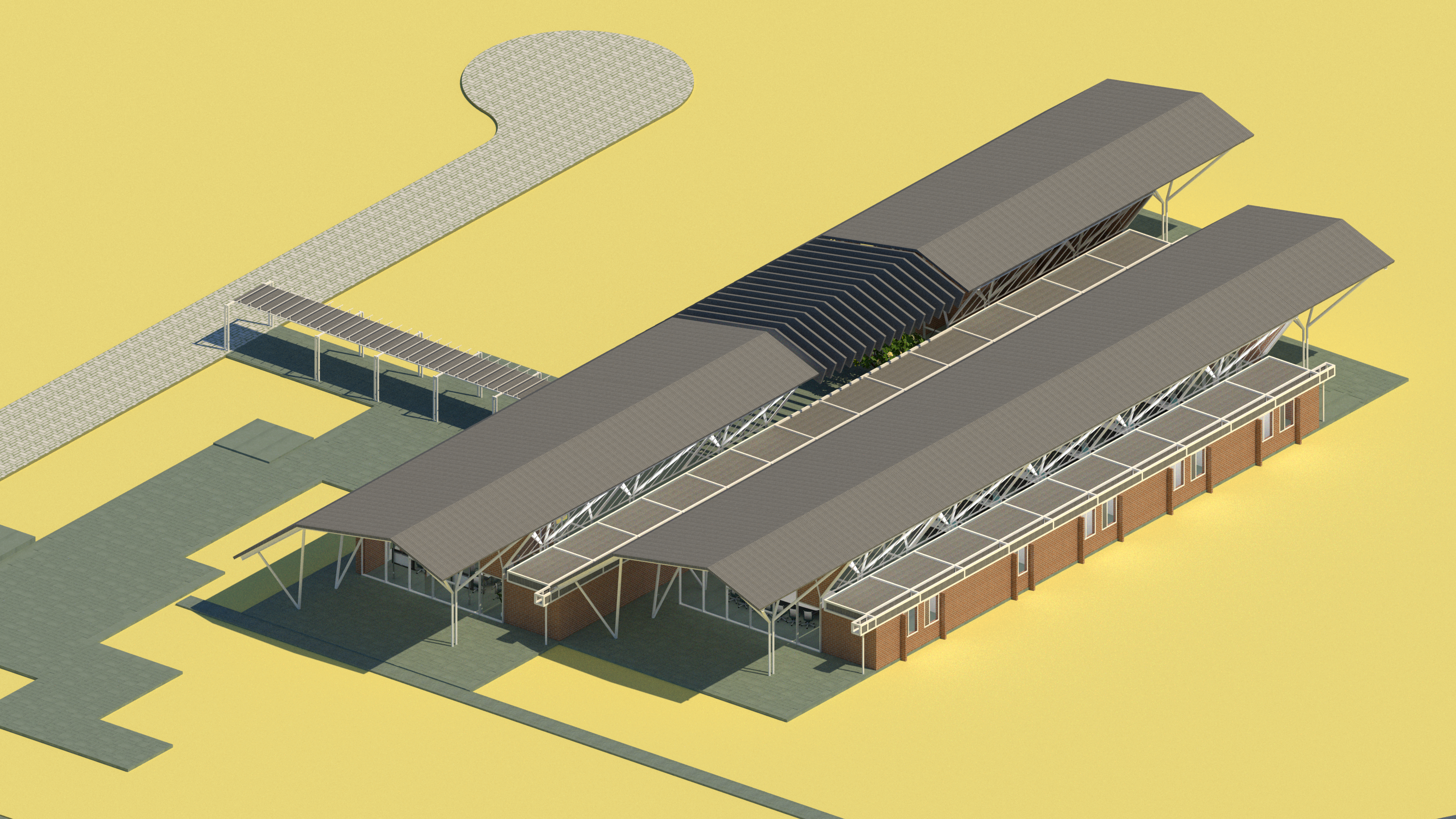

Exploded Isometric View

Sectional Perspective

Rendered Views

03 Bathhouse & Security

Function: Biometrics & Wating area in Security. Shower, Laundry & Locker area in Bathhouse.
Capacity: 50-60 people
Area: 700 sq.m

Bathhouse is the second building after Security from the material entry gate. It has 150 shower cubicles, lockers and laundry area. Workers come here to wash & change clothes. The roof of the structure is exposed concrete bands resting upon intermediate pedestals allowing north-light to penetrate through the building. Openings from vertical planes is minimal due to the minimal human visibility.

Exploded Isometric View

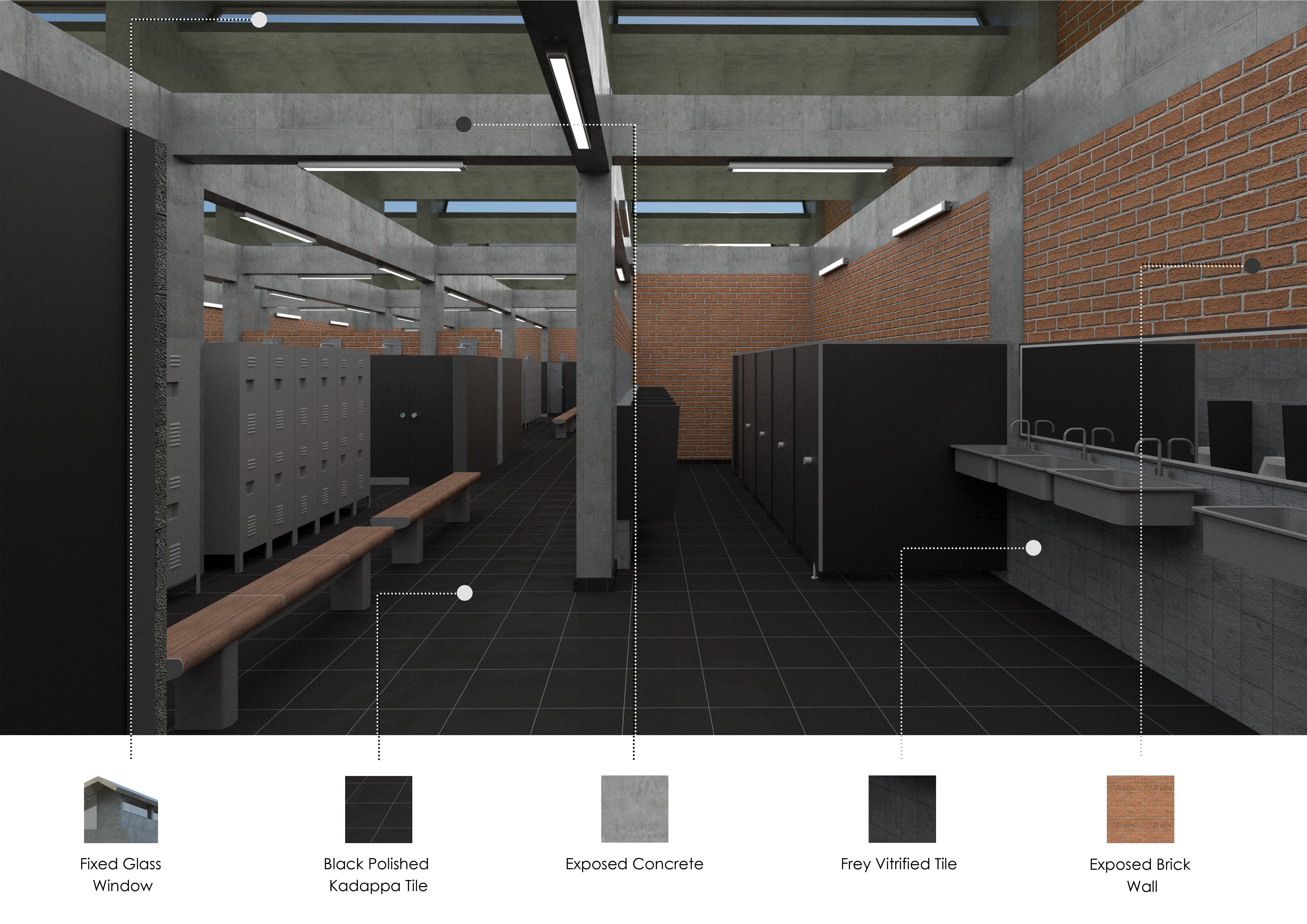

Material Representation View

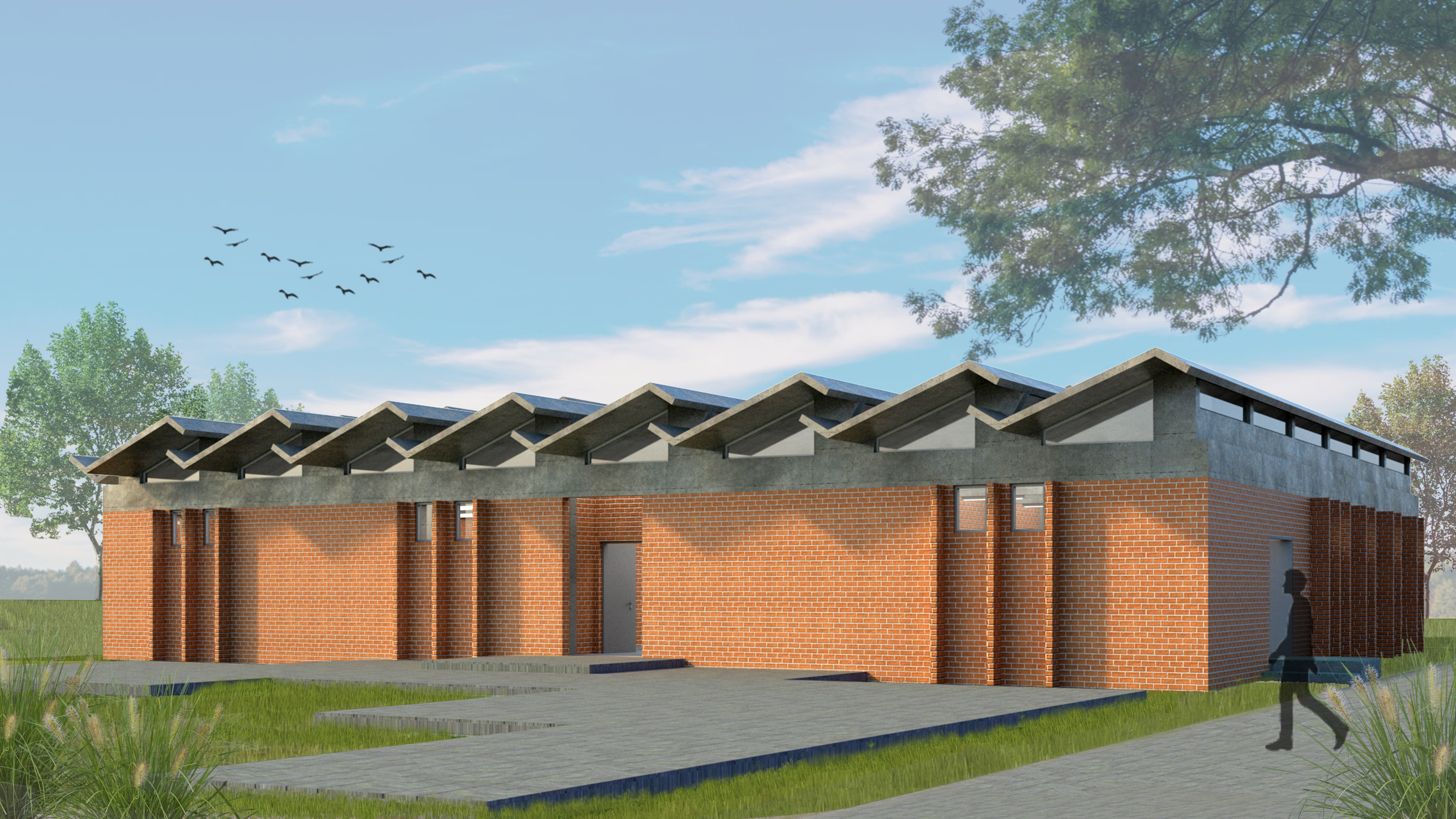

Rendered Views
